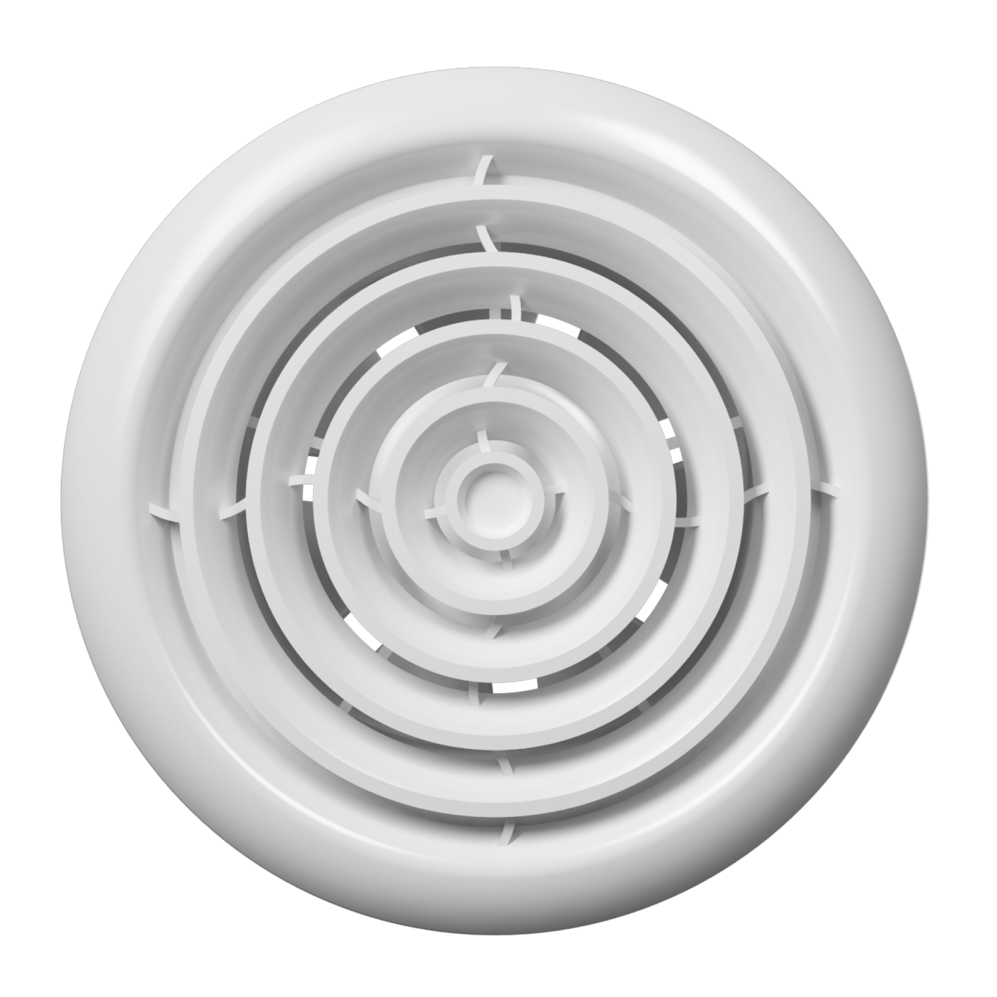

Model: SRD (Round Extractor Fan)

Model: SRD (Round Extractor Fan)
In stock Sold out Sold out (Backorder available)
For constant or periodic exhaust ventilation of bathrooms, kitchens and other domestic compartments.

Case and impeller are made from the high-quality ABS-plastic, resistant to ultraviolet.

The motor is equipped with overheating protection.

Fixing to the mounting place is carried out by means of screws.

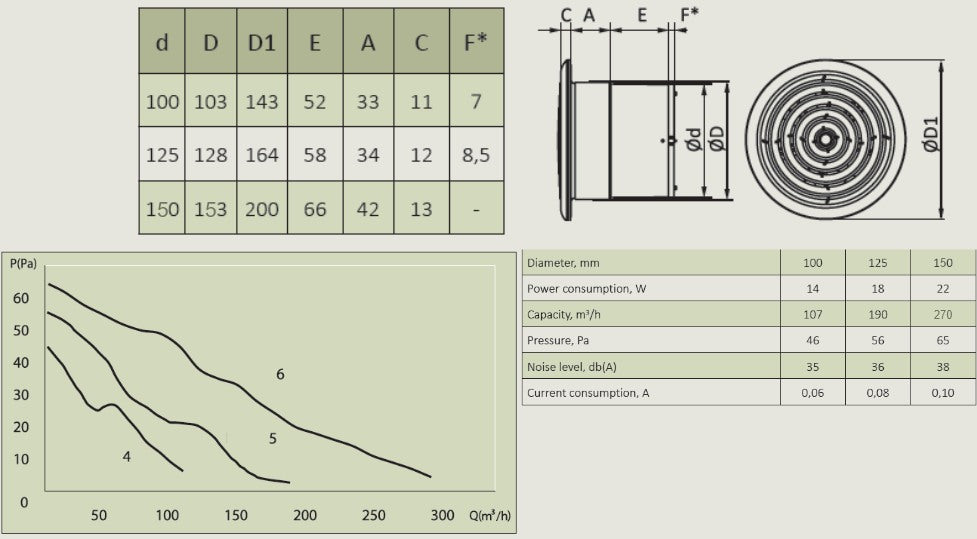

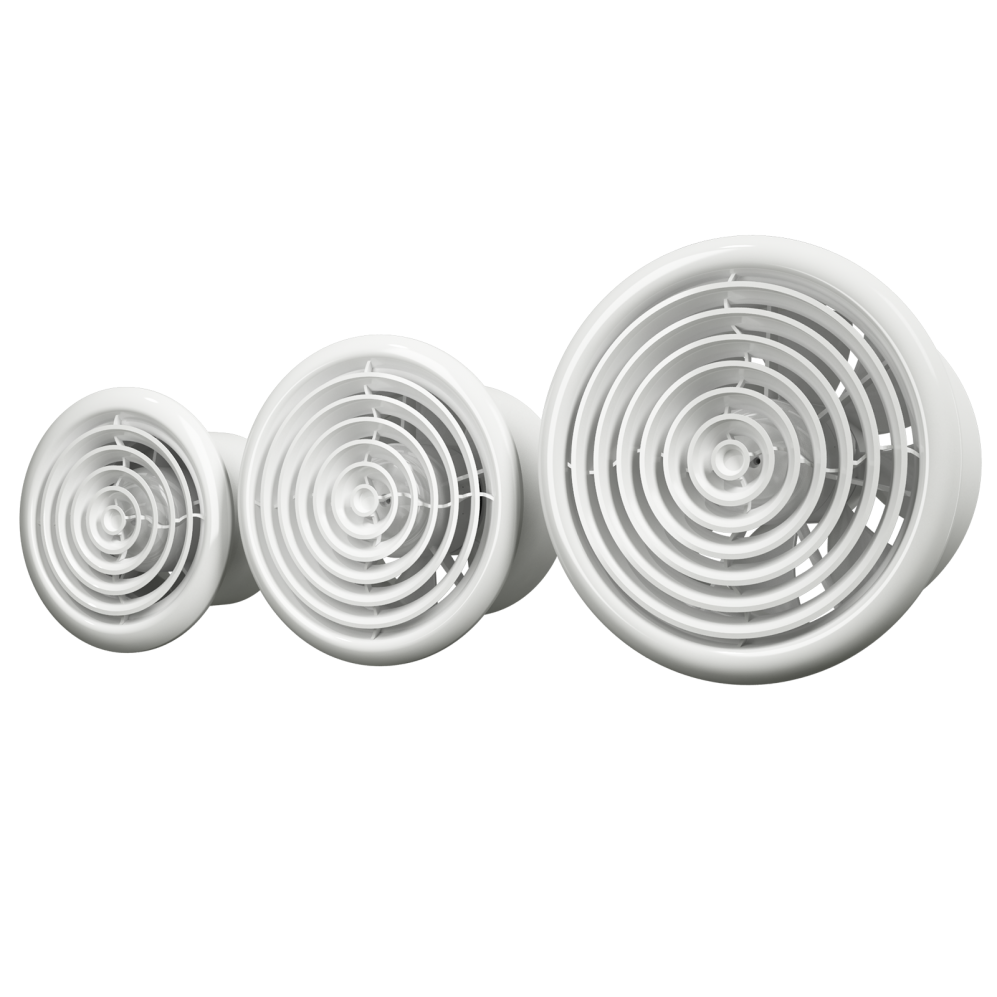

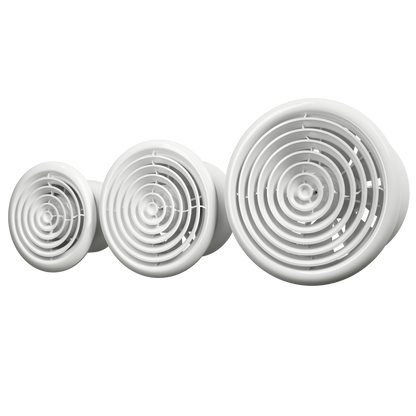

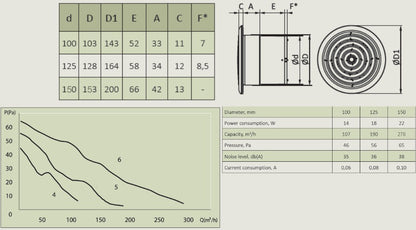

Types/Spigot Size

SRD100 - 100mm (4")
SRD125 - 125mm (5")
SRD150 - 150mm (6")

Models - Standard (S) & Timer (T)

Wiring diagram

SRD100 - 14w
SRD125 - 18w
SRD150 - 22w
Air Flow (Free Air)
SRD100 - 107 m3/hr
SRD125 - 190 m3/hr
SRD150 - 270 m3/hr
Sound Level dBA (3m)
SRD100 - 35
SRD125 - 36
SRD150 - 38
