Model: ICG (Internal Circular Grille)

For supply and exhaust ventilation, air conditioning and hot-air heating systems.

Allows even air distribution.

Equipped with a mounting flange for easy mounting.

For mounting on to ceilings or walls.


4
Fixed Louvred Grille

Please select which size and colour your require above

It is ideal for the termination of ducts.
The grille apperance may change.

Worm Drive Jubilee Hose Clips Pipe Clamps
Type: Worm Drive Jubilee Hose Clips Pipe Clamps

Features:
1. Quick release stainless steel hose clamps.
2. Just release the tension on the screw and flip up to instantly release the clamp.
3. Quick and easy to use to attach fans and filters to ducting and reducers as needed.
4. Also allow for easy removal of the clamp for quicker flex duct removal when cleaning the glass in your air cooled fixture or accessing your lamp.
4
Gravity Grille

Please select which size and colour your require above

Appearance may differ from time to time

Model: CG (Cowl Grille)
Cowled Wall Outlet Grille


This is a Cowled Plastic outlet grille complete with a none return damper

It is ideal for the termination of ducts and has a cowl over the outlet to stop any vibration or rattling in the wind of the none return shutter.

Model: SW-FLG (Flat Metal Fixed Grille)
Supply and Exhaust for residential ventilation, air conditioning and air heating systems and industrial.
External or Internal mounting
Can be used as an outside air brick
FlyScreen attached
Fixed with screws.

SW-FLG1212 - (125x125mm)
​SW-FLG1515 - (150x150mm)
SW-FLG2020 - (200x200mm)
SW-FLG2525 - (250x250mm)
SW-FLG3030 - (300x300mm)

Available in White (WH), Steel (ST), Brown (B)
Model: SW-HRISE (High Rise Ducting kit)
Supply and Exhaust residential ventilation, air conditioning and air heating systems.

Easy to fit when high up without the need to go outside.

Available in White, Brown, Terracotta, Beige, Black and Grey

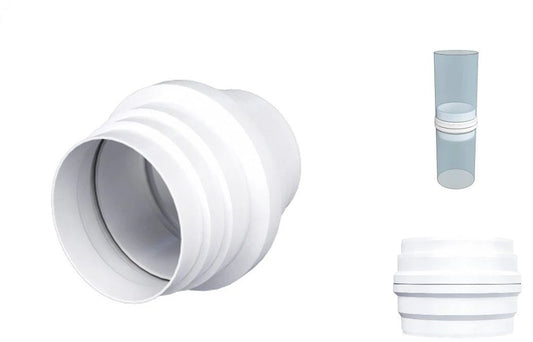

Solid Flexible Ducting Extractor Fan Reducer

Please note:
Duct = same size as ducting you will need a connector to join the 2 parts together
Male = Fits into our ducting
Option 1: 5" 125mm Duct to 4" 100mm Male
Option 2: 6" 150mm Duct to 5" 125mm Male
Option 3: 6" 150mm Duct to 4" 100mm Male
Option 4: 8" 200mm Duct to 6" 150mm Male
Option 5: 4" 100mm Duct to 3" 80mm Male
Option 6: 4.33" 110mm – to 4" 100mm Male
Please Note 110mm side is ID-110 and OD-114
Option 7: diameters: 80 (3") -100 (4") -120-125 (5") -150mm (6")
Please Note this needs to be cut to size, Larger side is Duct i.e 6" 150mm smaller end is
Male i.e 3" 80mm






Model: AG METW (Metal Air Valve)

The AG METW is a universally applicable air valve. Because of the materials used, the AG METW is very suitable for use in (very) wet areas like kitchens, bathrooms, etc.



Step less air volume control

Closed adjustment disk

Great air tightness between diffuser body and mounting collar

Suitable for both supply and exhaust air



Model: SL (Shower Light Grille)

Grille and light (optional white or chrome bezel included) with a built in LED Light (1.5w or 3w)



Fitting

Remove the Chrome/White part of the grille to show four fixing holes. Cut a hole in your ceiling and push the grille through.

Connect duct to the back of the grill.

Twist fit your Chrome/White bezel

Must Use a qualified electrician to wire to transformer/driver (provided).



Where to fit?

Grille/light can be mounted within the splash zone due to being 12v

Perfect for mounting directly over a shower or bath.



Light Fitting

4" - 3w LED MR16 - Cool White

5" 6" - 1.5w LED MR16- Cool White

Model: AG BS (Brushed Steel Air Valve)

The AG is a brushed stainless steel air valve with infinitely adjustable scale, suitable for rooms with high humidity, eg kitchens and bathrooms.



Step less air volume control

High valve body with spring attachment for proper airflow and less noise

Easy to remove for cleaning

Mounting collar included

Suitable for both supply and exhaust air



Model: BD-CON (Plastic Back Draught Shutter)

Round Back Draught Shutter Connector


Colour: White


Max / Min Temp: +60°c to -15°C

Model: CON (Plastic Connector)

Connector


Colour: White


Max / Min Temp: +60°c to -15°C

4
Condensate header used in vertical ventilation duct installation.
Designed for the collection of excess moisture from the air ducts.
As condensation is coming down the ducting it is trapped it the condensation trap where it will stay until it evaporates over time
No need for an external pipe connection
Available in three sizes - 100, 125 and 150 mm
Model: SW-FLANGE (Plastic Flange)
Plastic wall or ceiling mounted flange

Model: 90D (Plastic 90 Degree Bend)
90 Degree Bend
Colour: White
Max / Min Temp: +60°c to -15°C
Model: FP-CLAMP (Padded Collar/Clamp)

4", 5", 6", 8", 10", 12" Padded Clamps (Collars)

Fast Clamps are perfect for connecting fans, carbon filters, silencer and rigid ducting.

The metal band has a foam lining so reduces fan vibration.

If you need to connect your fan directly to filter for example it's much better to use a padded fast clamp than an connection method such as duct tape.

Heat and humidity in your grow area can often cause duct tape to peel meaning it must be replaced.

Pull out eyelets for easy hanging.

4
Back Flow/ Back Draught Valve/Shutter for domestic axial fans with flange diameter of 100, 125 and 150 mm.
It provides protection against all kinds of odours that may filter through.
Model: Roof Cowl Chimney Cap
Through the roof ventilation
110mm (4" 100mm duct pipe will fit inside 110mm Roof Cowl) different types of drain pipe might not fit inside
Bird Guard

Grey, White or Brown Please select above

** Please note that brown maybe slightly lighter then picture **



Model: AG (Plastic Air Valve)

The AG is a universally applicable air valve. Because of the materials used, the AG is very suitable for use in (very) wet areas like kitchens, bathrooms, etc.



Step less air volume control

High valve body with spring attachment for proper airflow and less noise

Closed adjustment disk

Mounting collar adapted for suspended ceilings

Great air tightness between diffuser body and mounting collar

Unique sealing system between mounting collar and clamping ring

Suitable for both supply and exhaust air



4
Application
Supply or Extract grille that can be mounted to walls, ceiling & sofits
Design
Sizes: 4" 100mm, 5" 125mm & 6" 150mm
Colours: White, Brown & Terracotta

Fixing with screws, Tape or glue (not included)
Model: SW-CHIMSS (Metal Chimney Hood)

Manufactured from galvanized steel.

Please adhere to building regulations or consult a qualified professional for suitability and specific installation guidance.

Model: T (Plastic Ducting Tee Piece)
Round equal T Piece
Colour: White
Max / Min Temp: +60°c to -15°C
Model: RDCLIP (Plastic Duct Clips)

Ducting Clips are used for fitting plastic solid ducting to a wall or ceiling.

They are robust, versatile and easy to fit.

Plastic Duct Clips are lightweight with simple to fit.

*Design may change from the picture*

45 degree bend
45 Degree Bend
Colour: White
Max / Min Temp: +60°c to -15°C
Window Trickle Vent

Window Trickle Vents

Mounting without drilling
Air supply is adjusted with a special slider regulator
Filter blocks off any dust from the outside

The air flow area of our vent is 644 mm2 (it is limited by the mesh on the front part)
Air passes through a gap at the installation site, the area of this gap on our ventilator is 944 mm2. (this matchs others on the market and for more airflow please remove the filter which others models do not come with)


WHAT EXACTLY IS A TRICKLING VENT?

The window trickle vent is a great option for passive ventilation and air circulation in double-glazed windows or doors. By reducing moisture and condensation, these vents can also prevent the formation of wet spots and ugly black mildew/Mould. With their ability to deliver fresh air without the need for open windows or doors, trickle vents are a valuable addition to any room.



ENHANCE YOUR HOME'S INDOOR AIR QUALITY WITH NO-DRILLING TRICKLE VENTS WITH BUILT-IN FILTERS FROM OUR SHOP!

As a provider of exceptional ventilation solutions, we prioritize meeting our customers' home air flow needs. Our no-drill vents are crafted with premium materials and are designed for effortless installation, ensuring a swift and convenient process. Our diverse assortment of vents caters to all rooms in your home, delivering fresh and purified air with our incorporated filters.

No-Drilling Trickle Vents with Filters for Cleaner Air

Model: SW-CONAVM (Anti Vabrite Connector)

CONAVM flexible insert is designed to eliminate vibrations in ventilation systems that occur during the operation of air handling units and other devices connected to air ducts and fittings.

CONAVM is made of galvanized steel and polymer fabric, it is operated at temperatures from -40 to +50 degrees.

Model: SW-MC (Metal Padded Clamp)

Comes in 4", 5", 6", 8", 10", 12"

Equipped with a rubber guarding gasket and a universal screw-nut (M10 to M8).

Designed for wall or ceiling mounting of the ducts of the corresponding diameter.

Model: SW-SHUTVA (Metal Shut off Valve)

Manufactured from galvanized steel.

Used to control the flow rate of systems with a working pressure not exceeding 1500 Pa.

The Handle is used as an actuating device (manual control).


Model: 15D (Plastic 15 Degree Bend)

15 Degree Bend

Spigots
Male - Fits into ducting but will need a small amount of duct to connect to male ends

Duct - Will need a connector if connecting to duct

Colour: White
Max / Min Temp: +60°c to -15°C

Model: AG FR (Fire Rated Air Valve)

The Fire Rated Ceiling Valves have been fire tested to BS EN 1365-2:1999 by The Building Test Centre in a full scale horizontal loaded timber joist floor and the ceiling and floor construction with the valves installed, achieved a Fire Rating of over 60 minutes.



The Fire Rated Ceiling Valves are available in both Supply and Exhaust configurations and incorporate integral intumescent materials. During a fire, the intumescent material expands and closes the aperture of the valve, re-instating the fire resistance of the structure.



Suitable for both supply and exhaust air



Model: SW-AD (Door Hatch)
For access to fans, pipes or any items that require to be hidden.
Designed for wall or ceiling mounting.
Open and close by press.
The possibility of universal installation for the left or right-side opening.
Can be used in high-humidity.
Made of high-quality ABS-plastic.

SW-AD1515 - 168 x 168mm (Door Dimensions 146 x 146)
SW-AD2020 - 218 x 218mm (Door Dimensions 196 x 196)
SW-AD3030 - 318 x 318mm (Door Dimensions 296 x 296)
SW-AD3535 - 368 x 368mm (Door Dimensions 346 x 346)

Thickness - 24mm (including flange)

Mounted with glue or cement

Colour: White
