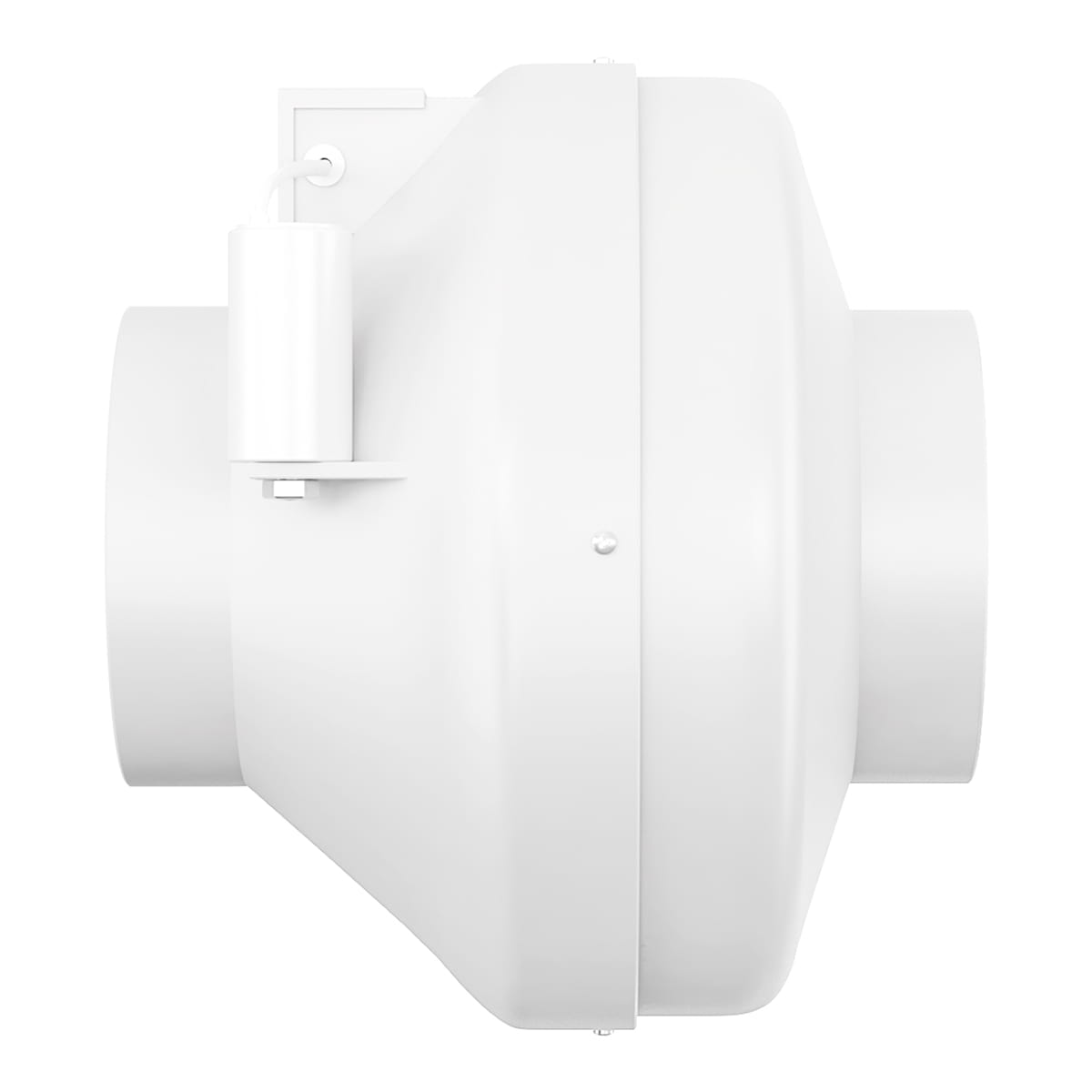

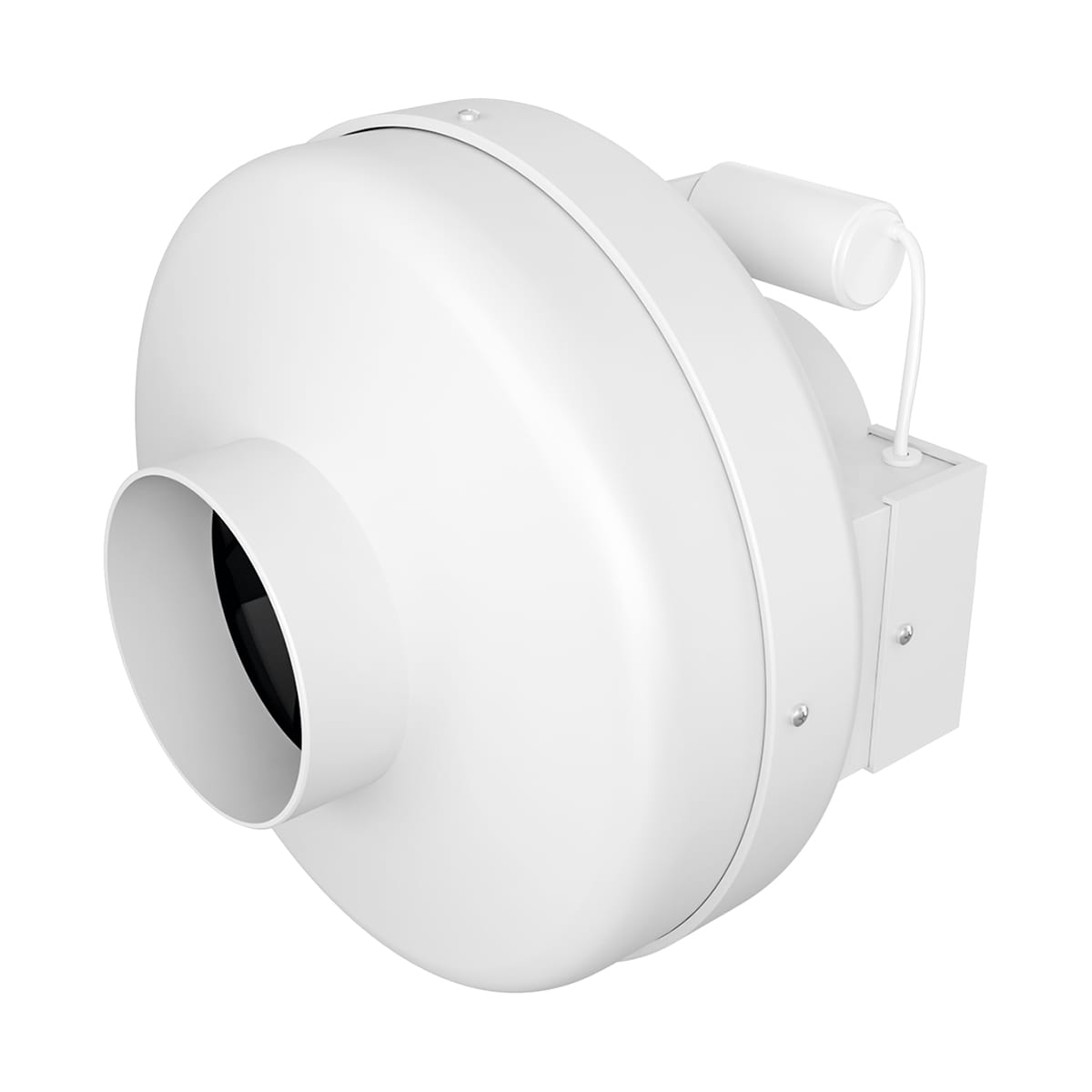

Model: STUBE P (Plastic Centrifugal Inline Tube Fan)

Model: STUBE P (Plastic Centrifugal Inline Tube Fan)
In stock Sold out Sold out (Backorder available)
Designed for inline mounting into any point of the ventilation system and at any angle. For supply and exhaust ventilation, The fan casing is made of high quality durable plastic.
Single-phase ball bearing motor equipped with a centrifugal impeller with backward curved blades. It is implemented with overheat protection with automatic restart.
Wall and ceiling mounting is carried out using the bracket
Can be speed controlled using a thyristor or transformer speed regulator.
IP44

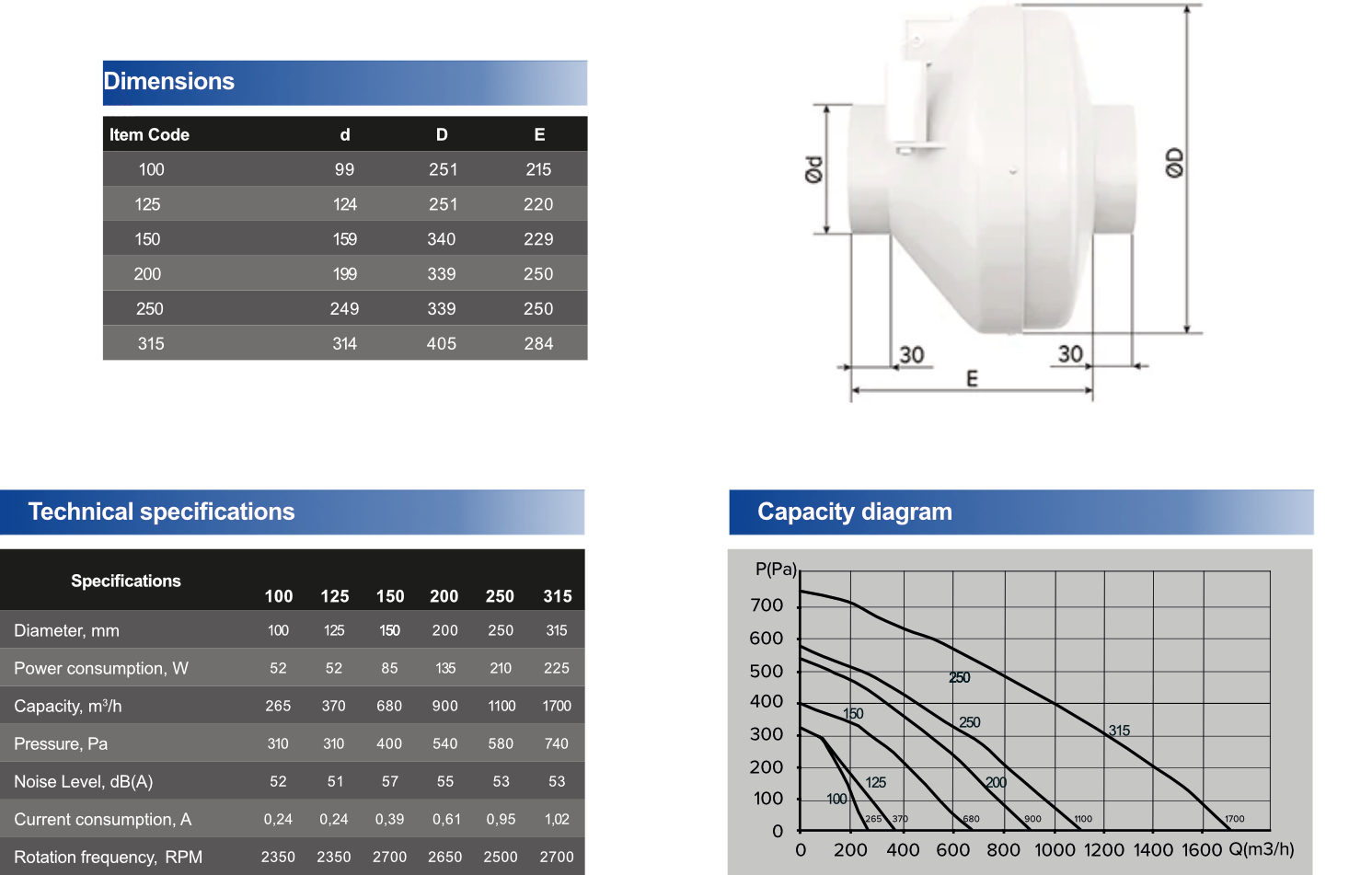

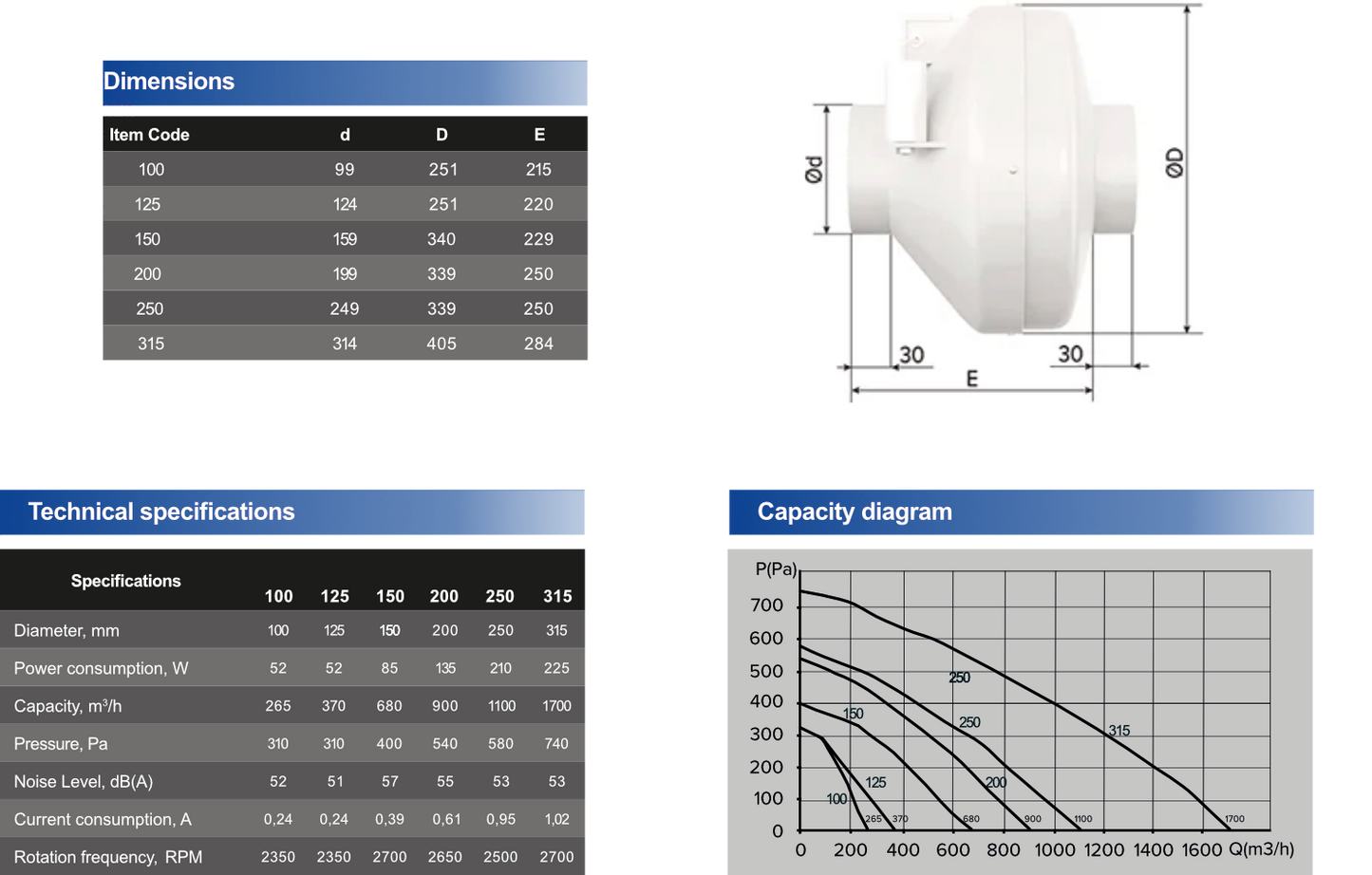

Sizes/Types

100mm (4") - STUBE100P
125mm (5") - STUBE100P
150mm (6") - STUBE100P
200mm (8") - STUBE100P
250mm (10") - STUBE100P
315mm (12") - STUBE100P
UK Plug - No
IEC Attachment - Yes (UK Plug lead not provided)
Wattage
100mm (4") - 52w
125mm (5") - 52w
150mm (6") - 85w
200mm (8") - 135w
250mm (10") - 210w
315mm (12") - 225w
Air Flow (Free Air)
STUBE100 - 265 m3/h
STUBE125 - 370 m3/h
STUBE150 - 680 m3/h
STUBE200 - 900 m3/h
STUBE250 - 1100 m3/h
STUBE315 - 1700 m3/hr
Sound Level dBA
100mm (4") - 52
125mm (5") - 51
150mm (6") - 57
200mm (8") - 55
250mm (10") - 53
315mm (12") - 53
