Model: SDISC (Wall/Ceiling Extractor Fan)

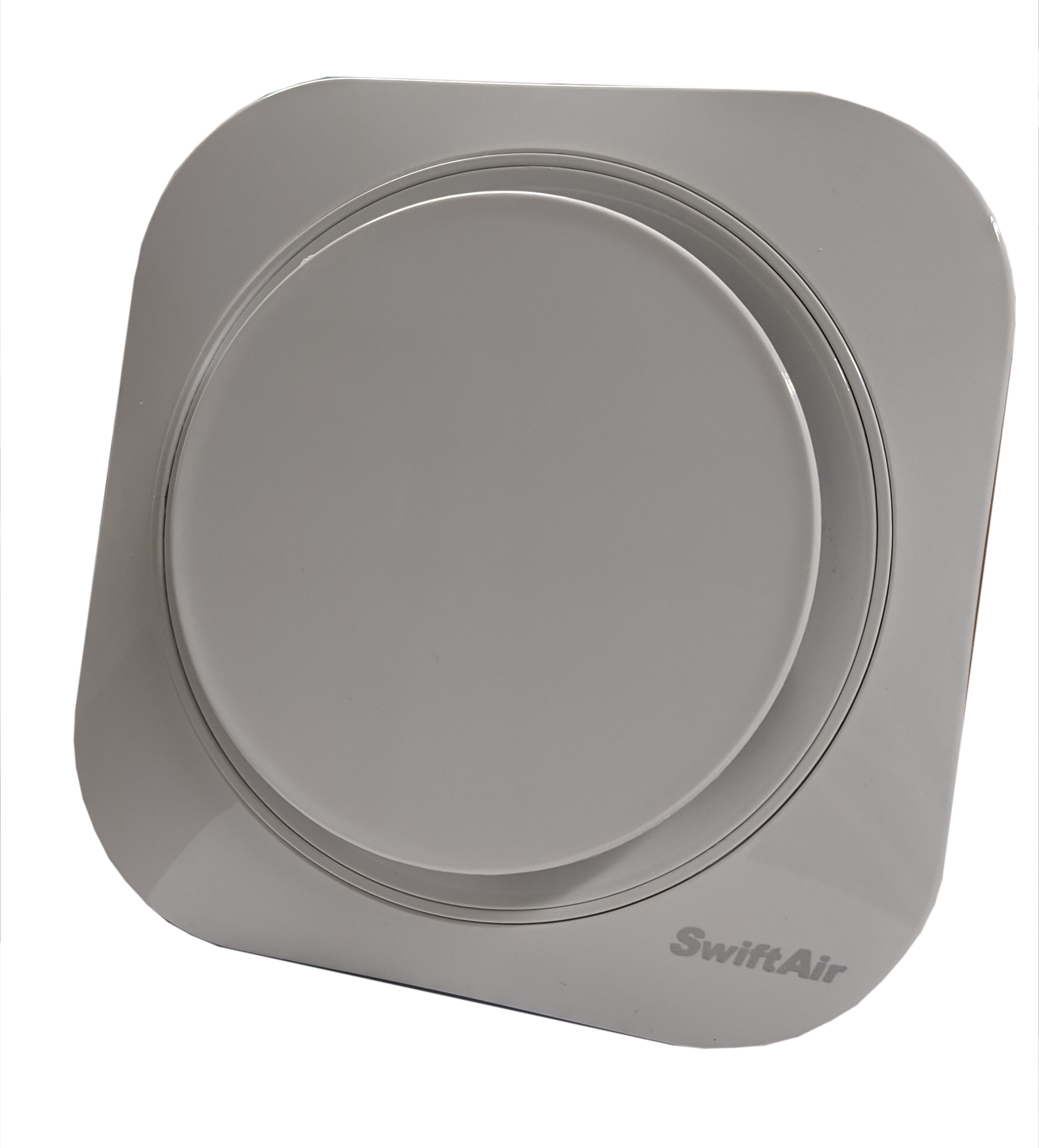

SDISC Extractor Fan
In stock Sold out Sold out (Backorder available)

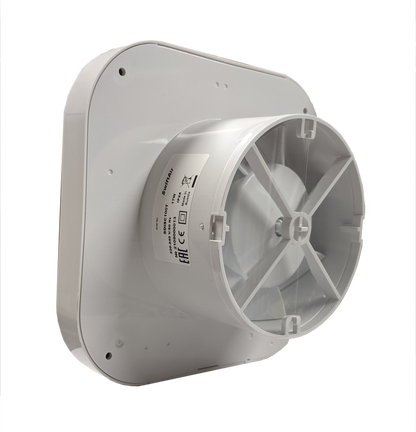

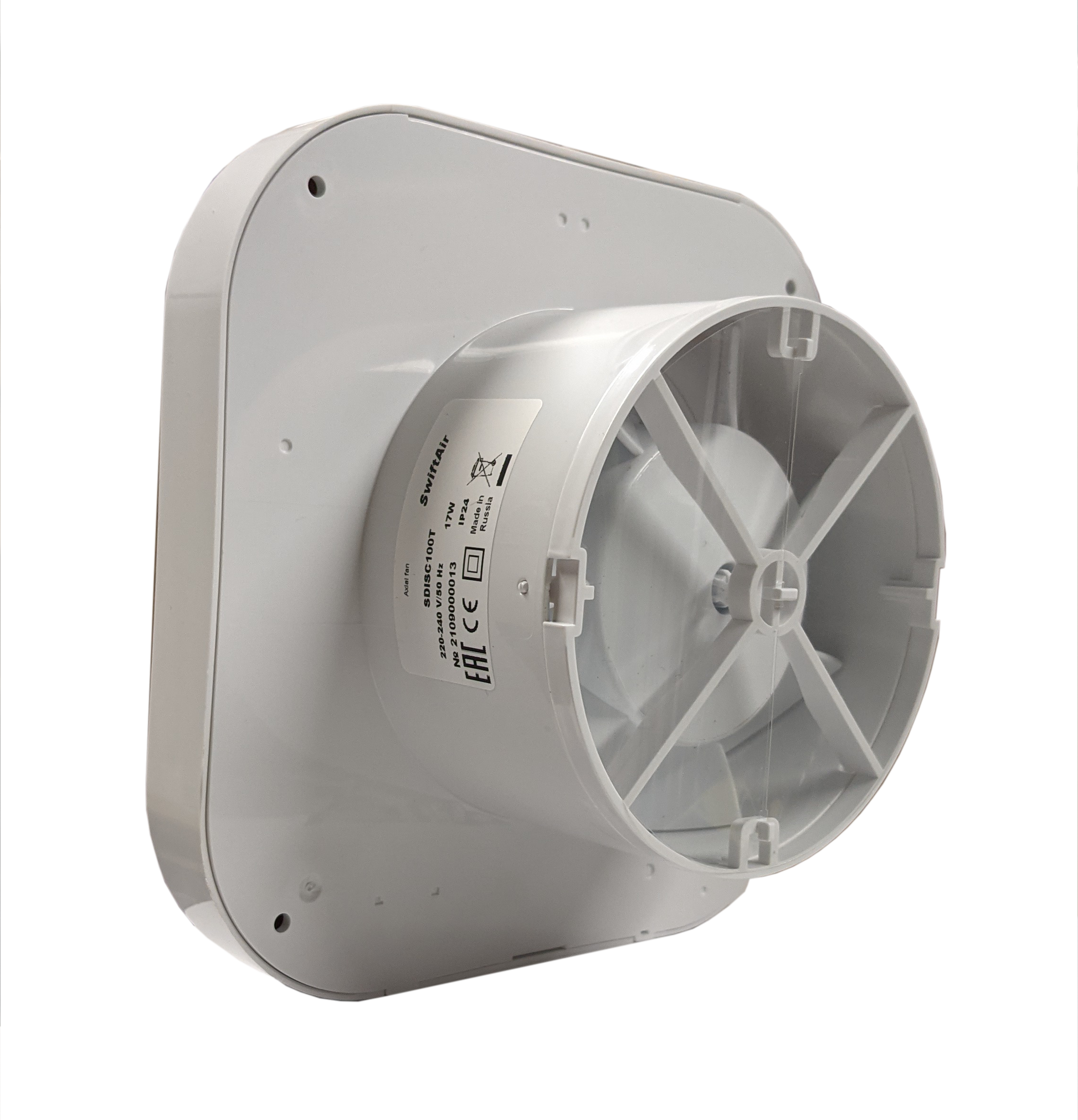

SDISC is our wall/ceiling extractor fan perfect for any bathroom, utility or Kitchen, each unit has a back draught shutter attached to stop any unwated drafts from entering from outside.

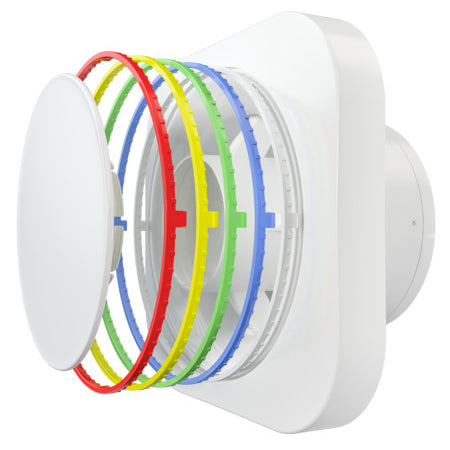

It comes with 4 coloured rings - White, Red, Green, Yellow & Blue

IP Rating: IPX4

Types/Spigot Size

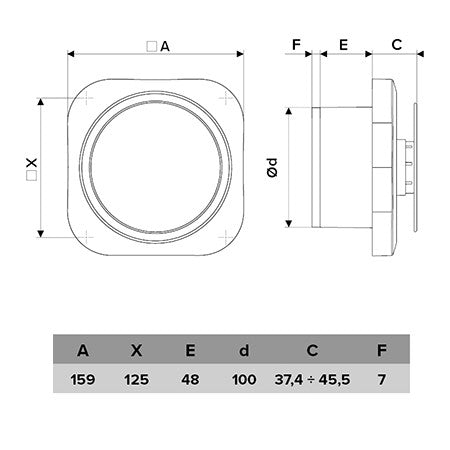

SDISC100 - 100mm (4")

Standard Model (S) - Turns On/Off

Timer Model (T) - When switched off will run on for the time set

Humidity Model (H) - Turns on and off with Humidity - If Switched Live is added fan will turn on for the time set then off (even if power is still applied to T Terminal) once light is turned off fan will run again for the time set then off.

Wiring diagram

100 - 17w
Air Flow (Free Air)
100 - 105 m3/hr
Sound Level dBA (3m)
100 - 35
