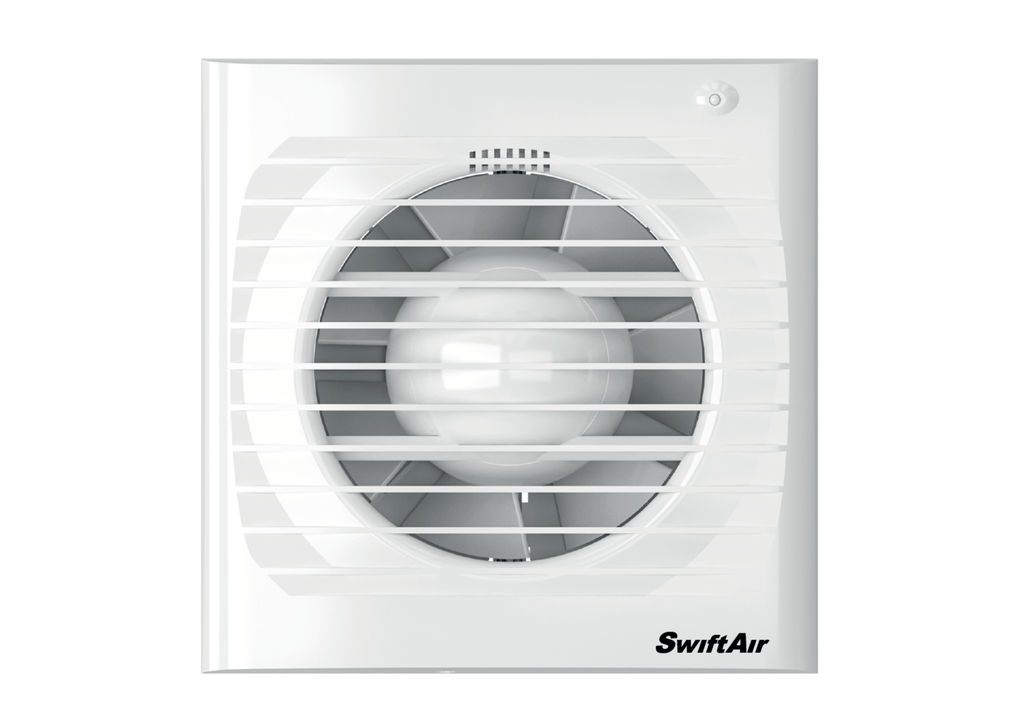

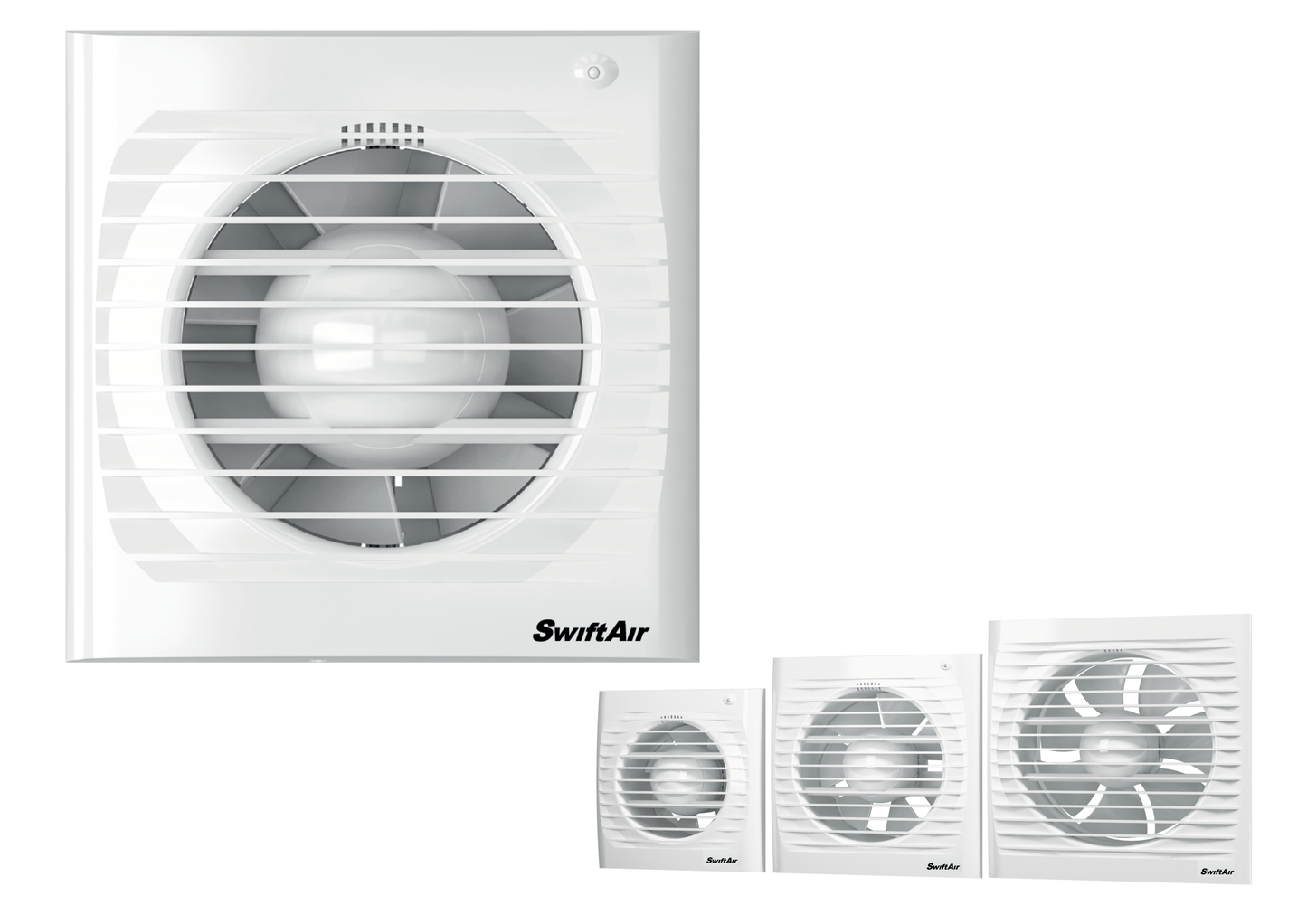

Model: SA (Wall/Ceiling Extractor Fan)
Model: SA (Wall/Ceiling Extractor Fan)
SA is our wall/ceiling extractor fan perfect for any bathroom, utility or Kitchen, each unit has a back draught shutter attached to stop any unwated drafts from entering from outside.
IP Rating: IP24
Types/Spigot Size
SA100 - 100mm (4")
SA125 - 120mm (5")
SA150 - 150mm (6")
Standard Model (S) - Turns On/Off
Timer Model (T) - When switched off will run on for the time set
Humidity Model (H) - Turns on and off with Humidity - If Switched Live is added fan will turn on for the time set then off (even if power is still applied to T Terminal) once light is turned off fan will run again for the time set then off.
Pull Cord (P) - Turns On and Off via the Pull Cord attached to fan, Perm LIve and Neutral Needed
Wattage
100 - 14w
125 - 16w
150 - 16w
Air Flow (Free Air)
100 - 97 m3/hr
125 - 183 m3/hr
150 - 290 m3/hr
Sound Level dBA (3m)
100 - 35
125 - 36
150 - 38
