Wall In line Void/Loft Mounted Heat Recovery Unit Only
Unit label airflow is incorrect unit does 200m3/hr on full speed
Please note all airflows are at free air (No pressure) & Without filters.
Filters can reduce total performance by 50m3/hr
Features
W415 x H255 x L450
High Speed 200m3/hr
Low speed 130m3/hr
| Without Filters |
| speed |
1 |
2 |
3 |
| m³/h |
130 |
150 |
200 |
| W |
40 |
45 |
66 |
| rpm |
1874 |
2194 |
2610 |
|
|
|
|
| With Filters |
| speed |
1 |
2 |
3 |
| m³/h |
110 |
130 |
170 |
| W |
39 |
45.5 |
66 |
| rpm |
1874 |
2194 |
2610 |
Designed to run continuously and provide adequate ventilation for a bathroom, en suite, shower room, wet room etc.
Will provide up to 75% heat recovery
(As air is extracted the unit will recover up to 75% of the heat and add it to clean fresh air, and pump it back into your house.)

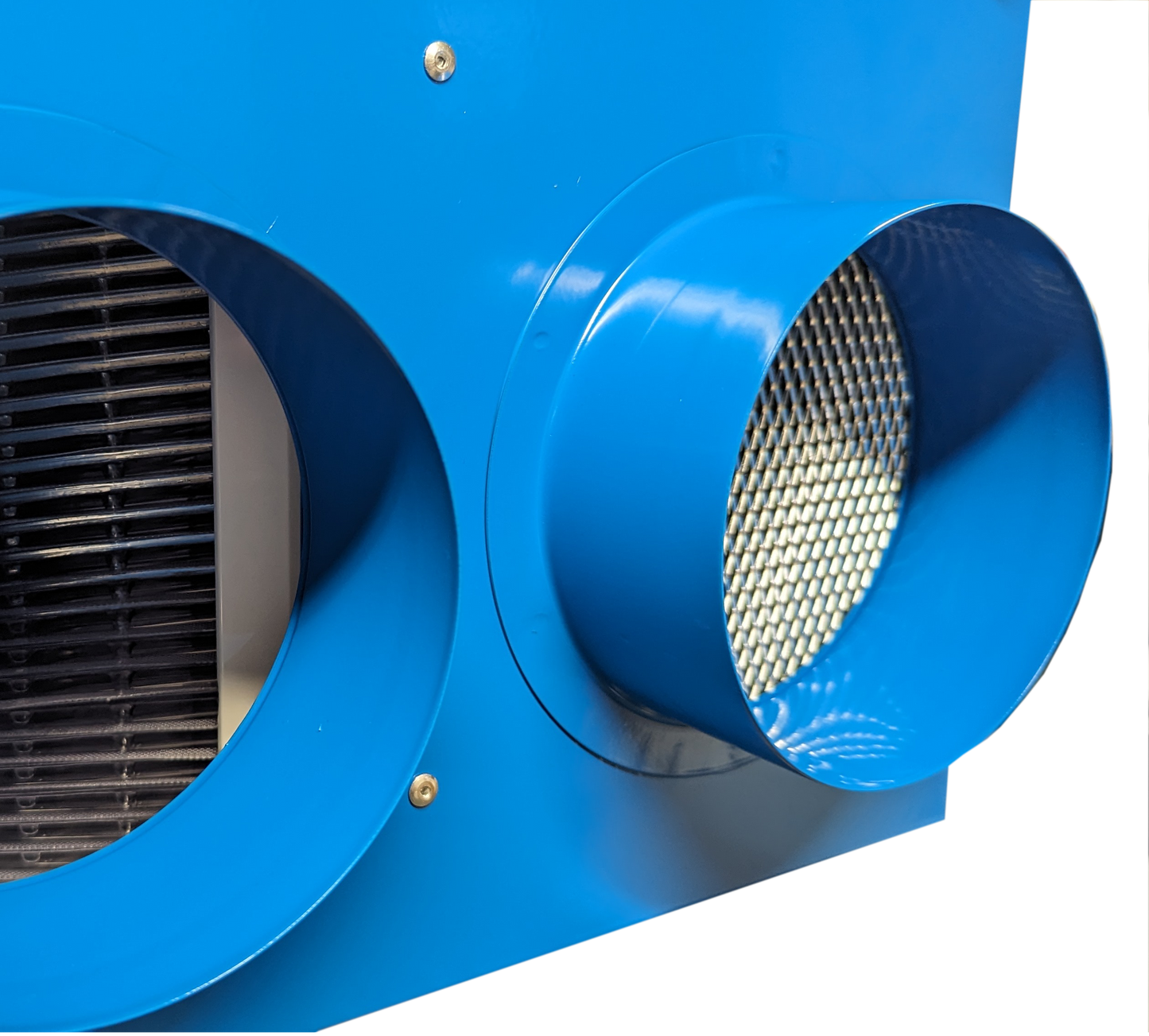

5" 125mm Spigots on unit
Eliminate mould and control condensation
Loft/void space mounting.
Condensation Drain fitted to bottom of Unit
